BTC Miner Innosilicon T2T T2 Turbo 30T 37T , ASIC Bitcoin Mining mahcine blochchain crypto device
Innosilicon has released multiple models of T2T series bitcoin mining machine products on the market: such as T2T+, T2TZ, T2TZS, T2TH, T2THS, T2THU, and SI and SII are also divided into different batches according to the factory batch. Today’s trial is the latest model of Innosilicon T2TH-30T Bitcoin mining machine product.

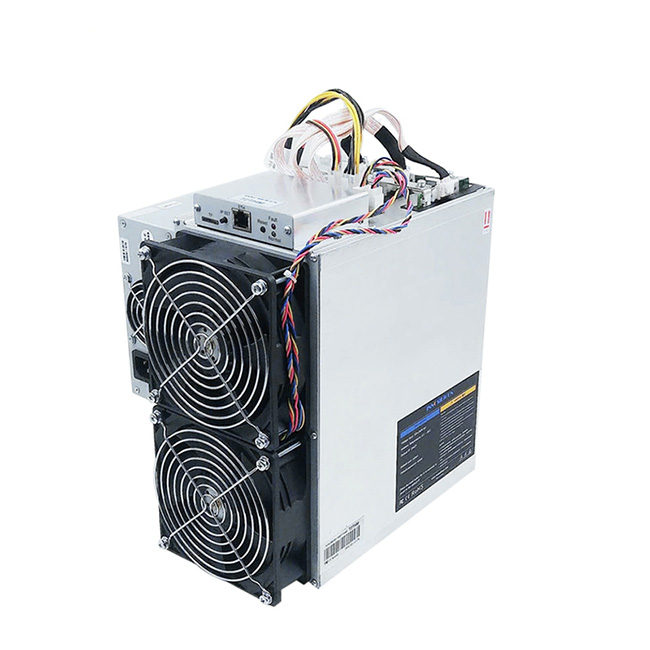

Innosilicon T2TH-30T is different from the single-tube design of the brother model T2T-32T. It has been changed to a dual-tube upright design and adopts an integrated power supply design.
The power supply combination method has changed from a back backpack (power supply) to a crossbody shoulder bag (power supply). At present, many mining machine manufacturers have changed the design to this way. It seems that the crossbody shoulder bag (side power supply) ) Is the popular element of ASIC miners.
The T2TH-30T heat dissipation method has also become a unilateral double fan for air supply and heat dissipation, shortening the air duct is conducive to rapid heat dissipation.
The nameplate of the product name and model, the method of obtaining the IP address, the login name and password, and the information on the precautions for use are posted on the side of the miner.
The control board is still a familiar formula, SD card slot, IP address reporting button, Ethernet interface, reset button, status indicator.
The usage and functions of the IPset (IP address reporting) setting button are as follows. Reasonable use can facilitate maintenance operations:
1. Press the IPset button for 1-4 seconds
(1) Send the IP of the machine to the "SetIP" tool;
(2) With the "SetIP" tool, set the miner to a static IP within the specified range of the tool
2. Press and hold the IPset button for 4-15 seconds, the static IP will become dynamic IP, and the mine pool settings will be restored to the default settings at the same time
3. Long press the IPset key for more than 15 seconds to switch the machine IP to static IP and restore the IP to the default IP at the same time
Reset (reset) button usage and function: press the reset button to restart the machine, long press for 5-10 seconds to restore to factory settings.
A 6pin interface is connected from the power supply to the control board to provide power for the control board and the fan. The control board and the hash board are connected by a flat cable.
There is also a voltage regulating line connected between the power supply and the control board. According to the site conditions, miners can choose low energy consumption, balanced, factory (default) and high computing power modes to run the mining machine.
The power supply uses a 10A plug. The traditional mine can also be used without modifying the socket, and the power supply is also convenient to use with a switch.
Specifications:
| Manufacturer | Innosilicon |
| Model | T2 Turbo 29T/30T |
| Also known as | T2T-29T/30T |
| Release | January 2021 |
| Size | 141 x 220 x 391mm |
| Weight | 9000g |
| Noise level | 72db |
| Cooling | 2 |
| Fan(s) | 75 |
| Power | 2400W |
| Voltage | 12V |
| Interface | Ethernet |
| Temperature | 5 - 35 °C |
| Humidity | 5 - 85 % |
